The Role of Copper & Aluminum Foil Slitting in Lithium Battery Production

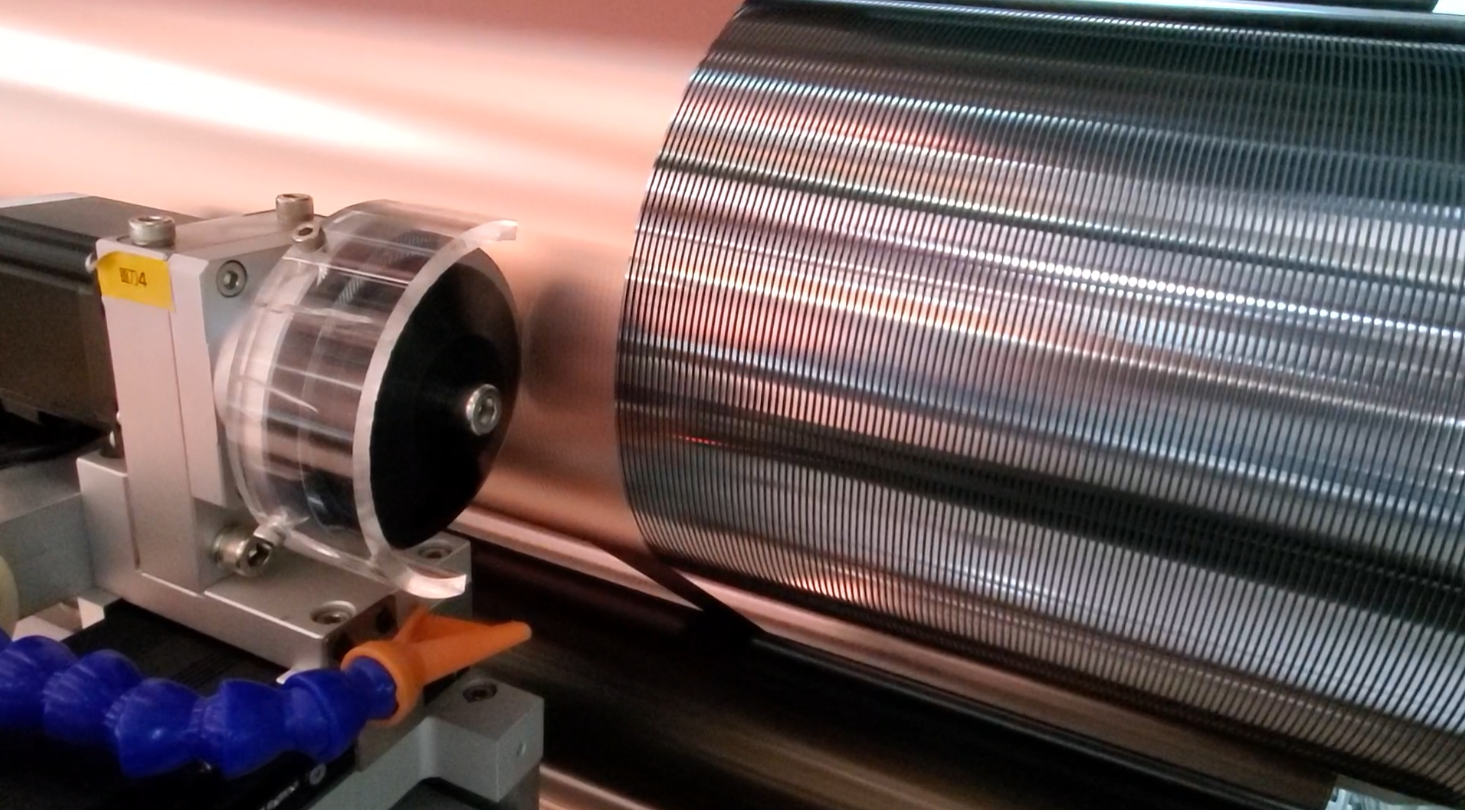

In lithium battery manufacturing, copper and aluminum foil slitting is a key process after electrode coating and calendaring. Large-width electrode rolls are precisely divided into smaller rolls before winding or stacking, directly affecting electrode handling, assembly efficiency, and battery consistency.
Copper foil is commonly used as the anode current collector, while aluminum foil is used for the cathode. During this process, the slitting knife directly determines the quality of the foil edge, making blade performance critical for high-speed battery production.
For lithium battery manufacturers, foil edge quality is closely related to production stability and safety requirements.
During copper and aluminum foil slitting, excessive burr formation may result in:
- Increased metal particle generation
- Reduced electrode processing stability
- Potential contamination risks during cell assembly
- Lower production efficiency caused by frequent blade replacement

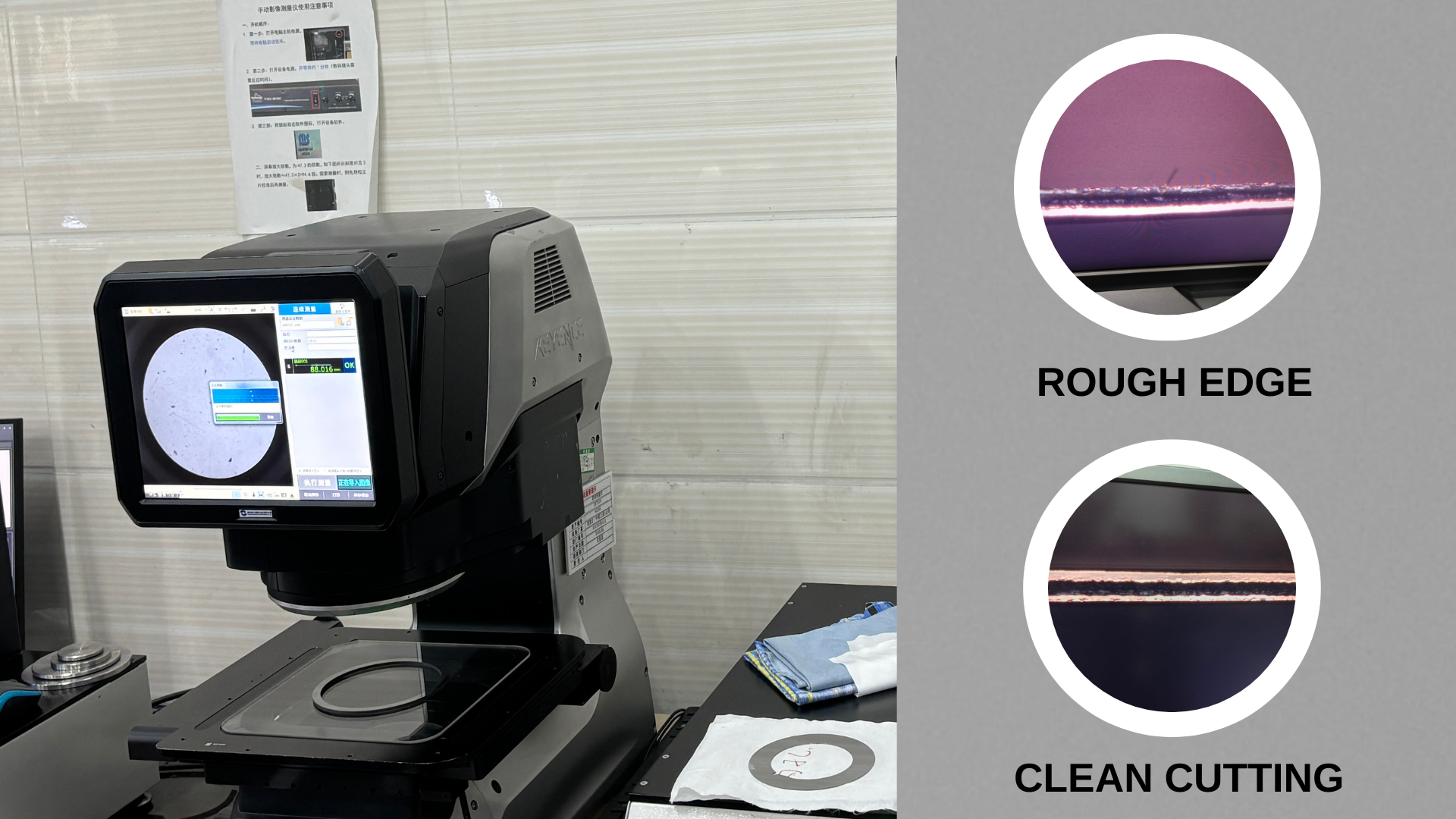

Why Burr Control Matters in Electrode Foil Slitting
As battery production lines continue increasing in speed and capacity, manufacturers require slitting knives that can maintain consistent edge quality throughout long operating cycles.
What Causes Burrs During Copper and Aluminum Foil Slitting?
1. Blade Edge Condition
The cutting edge is the first factor affecting foil quality. A sharp and stable edge enables clean material separation with lower cutting resistance.
During continuous operation, even a small amount of edge wear can increase:
- Cutting force
- Material deformation
- Edge roughness
- Metal dust generation
For battery foil slitting, maintaining consistent edge performance throughout the blade’s service life is critical.
2. Blade Material and Wear Resistance
Copper and aluminum foils are thin materials but require extremely precise cutting performance. The knife material must provide an ideal balance between hardness, strength, and wear resistance.
Traditional tool materials may experience faster edge degradation under high-speed production conditions, resulting in:
- Larger burr size
- Unstable cutting quality
- More frequent blade replacement
High-density tungsten carbide slitting knives provide excellent wear resistance and edge stability due to their high hardness and mechanical strength.
3. Slitting Parameters and Machine Conditions
Burr formation is also influenced by process parameters, including:
- Knife clearance
- Cutting speed
- Material tension
- Machine vibration
- Blade runout
Even with a high-performance knife, incorrect equipment adjustment or unsuitable cutting conditions may reduce edge quality and shorten tool life.
Shengong develops high-precision slitting knives specifically designed for demanding applications such as lithium battery copper and aluminum foil processing.
Advanced Edge Grinding Technology for Ultra-Low Burr Performance
The cutting edge quality of a slitting knife directly affects burr formation. Through Shengong’s specially developed edge grinding technology, the knife edge achieves excellent sharpness, consistency, and cutting stability.
With optimized edge processing, Shengong copper and aluminum foil slitting knives can control foil burr size within 2 μm under suitable operating conditions, helping manufacturers reduce metal particle generation and improve electrode processing reliability.
Key advantages include:
- Precise edge geometry
- Excellent cutting sharpness
- Reduced burr formation
- Stable performance during continuous production
High-Density Carbide Material for Longer Tool Life

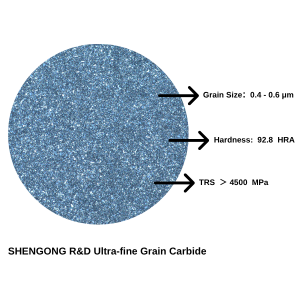

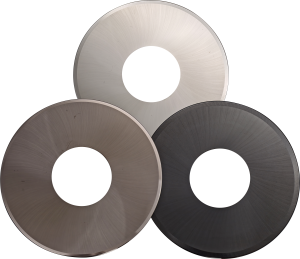

Shengong uses high-density tungsten carbide materials to manufacture battery foil slitting knives, providing a strong foundation for high-speed and long-term production.
The carbide material offers:
- High hardness for wear resistance
- High strength to maintain edge integrity
- Stable performance under demanding cutting conditions
For different battery manufacturing requirements, Shengong can also provide customized high-hardness coating solutions to further improve wear resistance and extend service life.
Customized solutions can be developed according to:
- Copper foil or aluminum foil characteristics
- Slitting machine specifications
- Production speed
- Expected tool lifetime
Improving Electrode Manufacturing Through Better Slitting Performance
In modern lithium battery production, copper and aluminum foil slitting is becoming increasingly demanding due to higher production speeds and stricter quality requirements.
Reducing burr formation requires the combination of:
Precision edge manufacturing
High-performance carbide materials
Optimized knife design
Proper production parameters
With advanced edge grinding technology, high-density carbide materials, and customized solutions, Shengong’s copper and aluminum foil slitting knives help battery manufacturers achieve cleaner cutting edges, lower burr levels, and more stable electrode production.
