Introduction

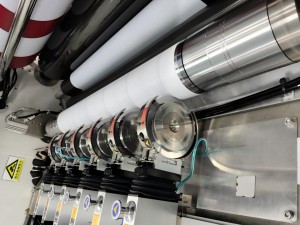

Lithium battery separator films are typically produced at high line speeds and slit into multiple narrow rolls before winding. Although the separator itself is only a thin polymer film, the slitting process places high demands on blade accuracy, edge consistency and machine stability.
Compared with standard methods of plastic film converting, separator production calls for closer attention to edge quality. Very slight burrs or loose fibers — even those not too large — can lead to winding problems or to failures at later stages of processing.
Among separator manufacturers, it is generally harder to keep the slitting quality uniform throughout a long production run than to obtain an excellent first cut.
Why Separator Slitting Is Different

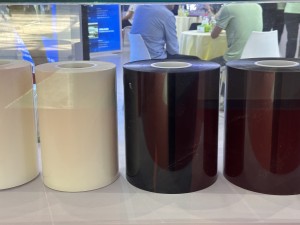

Most lithium battery separators are manufactured from PE, PP or multilayer microporous films. Some products also include ceramic-coated surfaces to improve thermal stability.
Most lithium battery separators are manufactured from PE, PP or multilayer microporous films. Some products also include ceramic-coated surfaces to improve thermal stability.
These materials have several characteristics that make slitting more demanding:
- · Film thickness is typically between 5–25 μm.
- · Material tension changes continuously during rewinding.
- · Ceramic coatings increase surface abrasiveness.
- · Long production runs require consistent edge quality over several hours.
Because of these characteristics, blade wear becomes one of the main variables affecting production consistency.

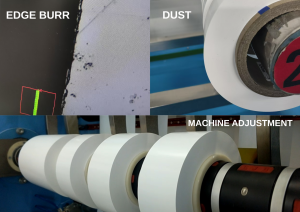

Common Problems Found in Separator Slitting
In many separator production lines, edge defects do not appear immediately after installing a new blade. Most problems develop gradually as the cutting edge wears.
Typical issues include:
- · Edge burrs and inconsistent slit quality
- · Accelerated blade wear when processing ceramic-coated separators
- · Increased dust and fine particle generation
- · Frequent blade adjustment and machine downtime
Shengong Separator Slitting Knives

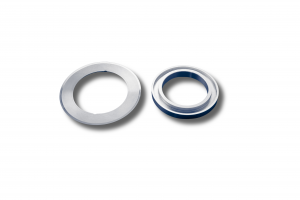

Shengong produces precision slitting knives of the circular type used in lithium battery separation.
All the knives are made by means of precision grinding—without deviation—with close attention to concentricity, flatness or edge form.
Available options include:
- · Ultra-fine grain tungsten carbide
- · Precision mirror grinding
- · ETaC-3 or other PVD coatings
- · Customized dimensions
- · Edge geometry optimized for separator materials
Rather than applying one blade design to every application, knife specifications are selected according to separator material, production speed and equipment configuration.
Typical Applications
Shengong separator slitting knives are used in:
- · PE separator film
- · PP separator film
- · Ceramic-coated separator film
- · Three-layer separator film
- · Roll-to-roll separator converting
Custom designs are available for different slitting equipment and production requirements.
Engineering Support
Selecting a separator slitting knife involves more than choosing blade dimensions.
Material characteristics, coating selection, edge angle, machine accuracy and operating parameters all influence cutting results.
With Shengong’s help, customers analyze their present production practices and obtain suggestions about blade setups suited to real needs.
Conclusion
With separator production speeds still rising, it is becoming more necessary to keep the edge quality constant for long production runs.
A precision-manufactured slitting knife with appropriate carbide grade, edge geometry and surface treatment helps reduce blade wear, maintain consistent cutting quality and support stable separator production.
