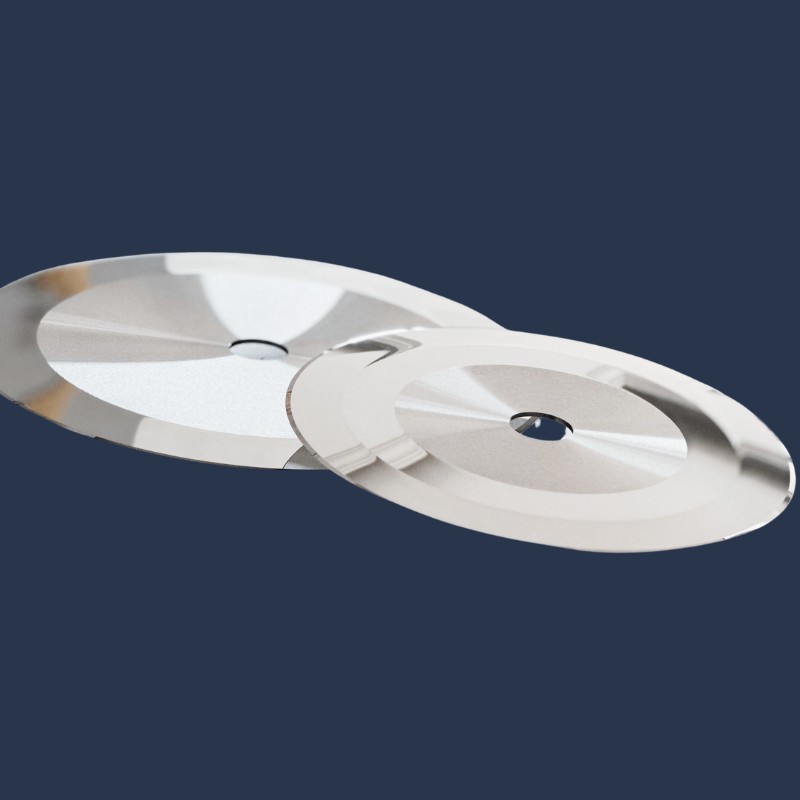

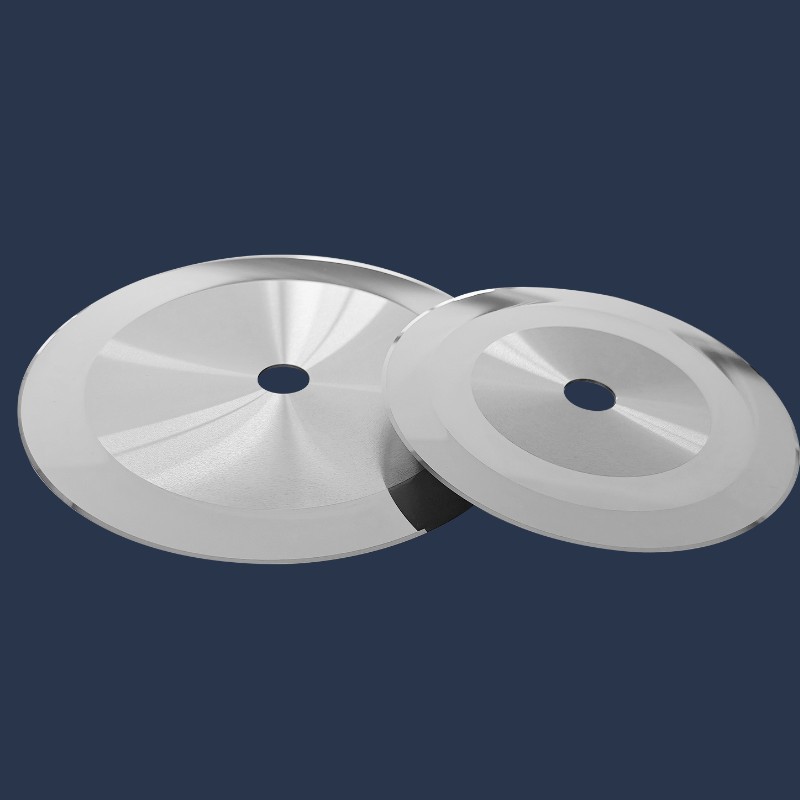

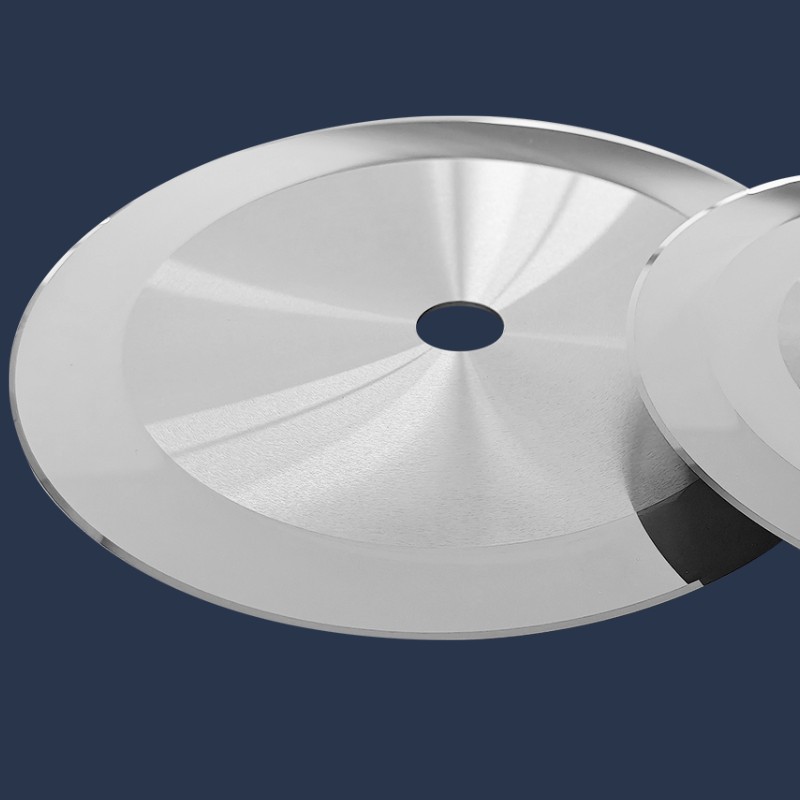

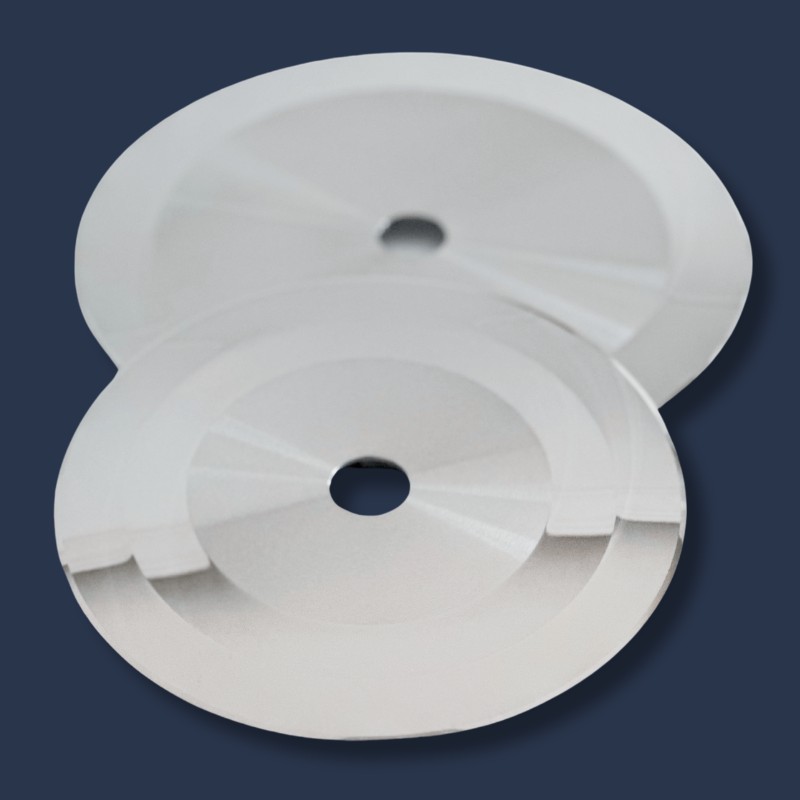

SG Tungsten Carbide Circular Slitting Knives | Fray-Free, Clean Cut for PET/PE Film and Adhesive Tape Slitting

Short Description:

Shen Gong carbide circular slitting knives are purpose-built for high-volume industrial slitting tasks. Manufactured from premium tungsten carbide with hardness ranging from HRA 90 to 91, these blades deliver up to 8 times longer service life compared with conventional HSS blades.
Adopting fully automated edge grinding, each knife reaches a precision tolerance of ±0.01mm. It consistently produces fray-free, burr-free and perfectly finished edges. The blades work reliably for PET films for food and electronics industries, CPP and PE films used in medical and packaging fields. They also handle conductive tapes, EMI shielding tapes, foam tapes, VHB tapes, waterproof tapes, release liners and composite films. All products hold ISO 9001 quality certification.


Product Detail

Product Tags

Detail Description

Precision Engineered for Industrial Demands.Shen Gong’s tungsten carbide slitter blades are the ultimate solution for high-volume tape and film processing. Carbide substrate (HRA 90-91 hardness), these blades resist wear from abrasive materials like glass fiber tapes and adhesive residues, 8X longer than conventional HSS blades.

Advanced Manufacturing Technology

CNC Grinding: Achieves mirror-polished edges to eliminate fiber tear and adhesive transfer.

Dual-Bevel Options:30° Edge: Ideal for rigid films (PET/OPP) and conductive tapes.45° Edge: Optimized for compressible foams and VHB tapes.

Features

10X Longer Lifespan: Tungsten carbide (HRA 90-91) vs. HSS.

Burr-Free Cutting: edge finish for clean slits.

Universal Compatibility: 1.8–4mm thickness, single/double bevel.

High-Speed Ready: Balanced for 800m/min operation.

OEM: Custom diameters (Φ160–350mm) for slitter rewinder machines.

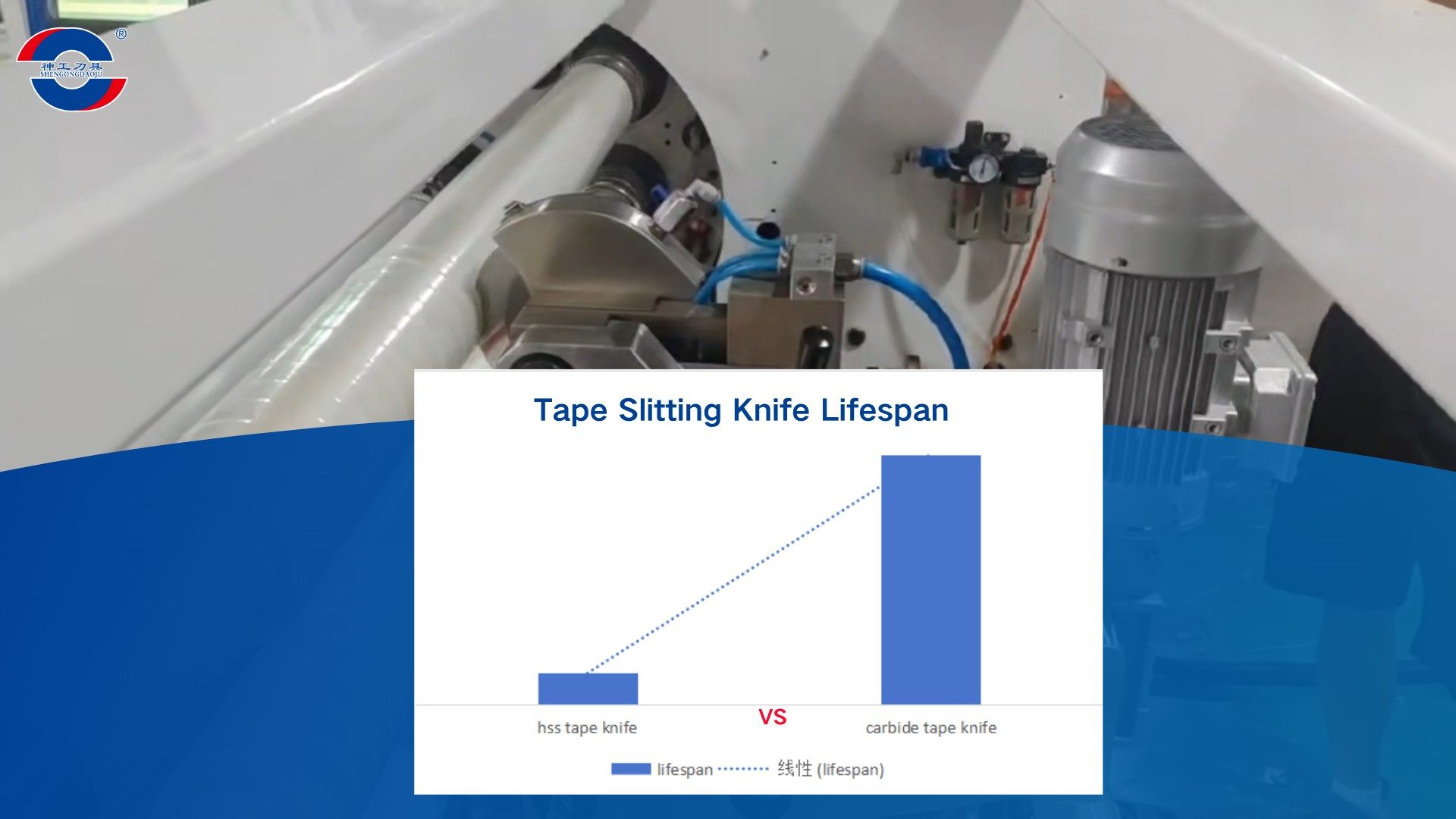

carbide slitting knife for tape film with long lifespan

Specifications

Item O.D-I.D-T
1  Φ160- Φ25.4-1.8
2  Φ180- Φ25.4-1.8
3  Φ200- Φ25.4-2
4  Φ250- Φ25.4-2.5
5  Φ300- Φ25.4-3
6  Φ350- Φ25.4-3.5
7  Φ400- Φ25.4-4

Applications

1. Tape Manufacturing

Conductive/EMI Tapes: No metal dust, high precision.

Foam/VHB Tapes: Zero compression deformation.

2. Flexible Packaging

PET/CPP Films: Edge stability for high-speed lamination.

Release Liners: Kiss-cutting without substrate damage.

3. Medical & Electronics

Hypoallergenic Adhesives: FDA-compliant materials.

Thin-Film Battery Tapes: Dust-free cuts for clean rooms.

4. OEM & Maintenance

Slitter Rewinder Compatibility: Match Kampf, Atlas, Nishimura systems.

Reduced Downtime: short time blade change protocol.

slitting of lithium battery terminating tape is burrs -free and pecfect edge

If you need Tape Slitting Knives, Please to contact Shen Gong Team:howard@scshengong.com
