Introduction

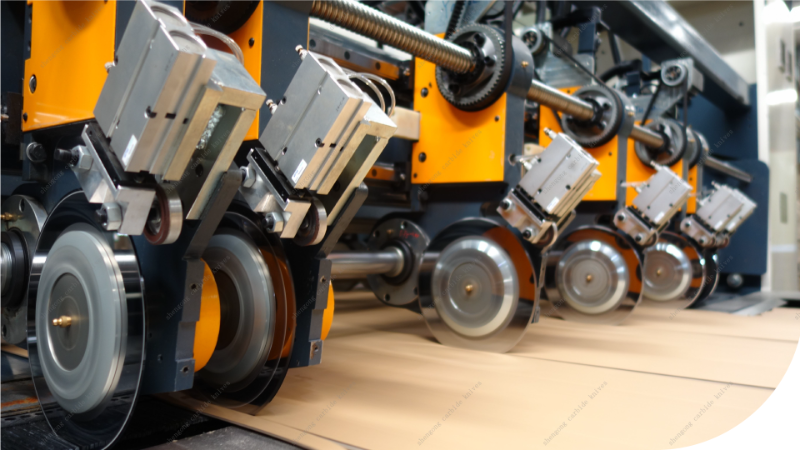

High-speed corrugated production lines are widely operating at speeds up to 450m/min. At this level of production, blade wear, cutting stability, and edge consistency become critical factors affecting output quality and production cost.

Traditional uncoated carbide slitter scorer knives often experience rapid wear under continuous operation. Common issues include edge degradation, material buildup, unstable scoring depth, and frequent blade changeovers.

Shengong TiN/TiCN PVD coated corrugated slitter scorer knife is developed to improve cutting stability and extend tool life in high-intensity production environments. The PVD coating enhances surface hardness, thermal resistance, and reduces adhesion during cutting, ensuring more stable long-cycle operation.

Technical Advantages

1. Premium Tungsten Carbide Substrate

The blade is manufactured from ultra-fine grain WC-Co cemented carbide, designed for high-load corrugated cutting conditions.

• Hardness: HRA 92
• High transverse rupture strength
• Excellent resistance to edge chipping under intermittent cutting loads
• Stable performance across full blade width

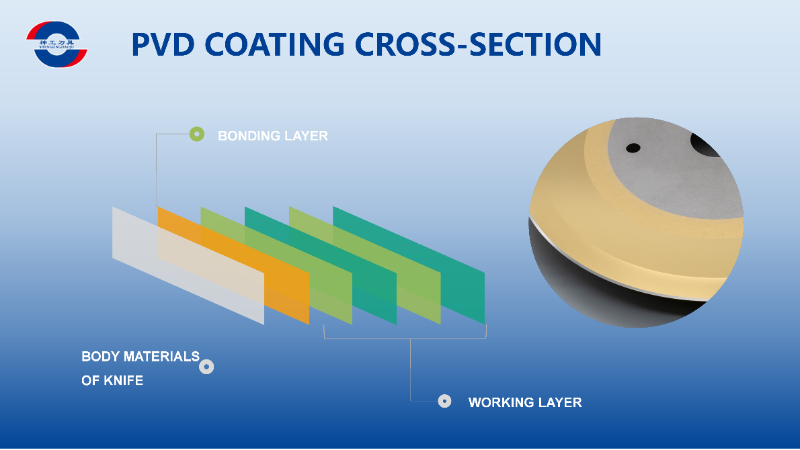

2. TiN/TiCN PVD Coating Technology

Industrial-grade PVD ion plating technology is applied to improve surface performance without changing blade geometry.

• Coating thickness: 0.3–3 μm
• Micro hardness: 2000–3500 HV
• Maintains original cutting edge precision
• Enhances wear resistance in fiber-rich environments
• Reduces friction and material adhesion

3. High Temperature Resistance up to 600°C

Continuous high-speed cutting generates significant heat which can accelerate blade degradation.

The PVD coating improves thermal stability and helps prevent:

• Edge softening
• Oxidation damage
• Premature wear under long production cycles

4. Anti-Adhesion Performance

The coated surface reduces material buildup from paper fiber and metal residue.

Benefits include:

• Cleaner cutting edge
• Reduced downtime for cleaning
• More stable slitting quality over long runs

5. Precision Grinding & Surface Control

Each blade is processed with CNC precision grinding and polishing to ensure stable performance.

• Surface roughness: Ra ≤ 0.2 μm
• Strict dimensional tolerance control
• Consistent scoring depth and slitting accuracy

Industrial Cutting Problems in Corrugated Production

In real production environments, blade failure is mainly caused by three factors:

1. Fiber Abrasive Wear

Continuous friction between paper fibers and cutting edge leads to gradual wear, resulting in burrs and inconsistent cutting quality.

2. Thermal Fatigue

Heat generated during high-speed cutting reduces carbide stability and accelerates oxidation.

3. Edge Build-Up

Residue accumulation on the blade edge affects cutting precision and increases downtime for cleaning or replacement.

Performance Test Data

Test Conditions

• Line speed: 450m/min
• Material: 250gsm B-flute corrugated board
• Environment: 26°C
• Continuous dry cutting

Result

Result:
Service life improved by approximately 25%, with stable cutting performance in continuous production conditions.

Application Scenarios

1. Standard Corrugated Carton Production

Suitable for A, B, C, and E flute corrugated board, widely used in logistics and shipping carton manufacturing.

2. High-End Printed Packaging

Provides clean and stable cutting edges for retail packaging and color box applications.

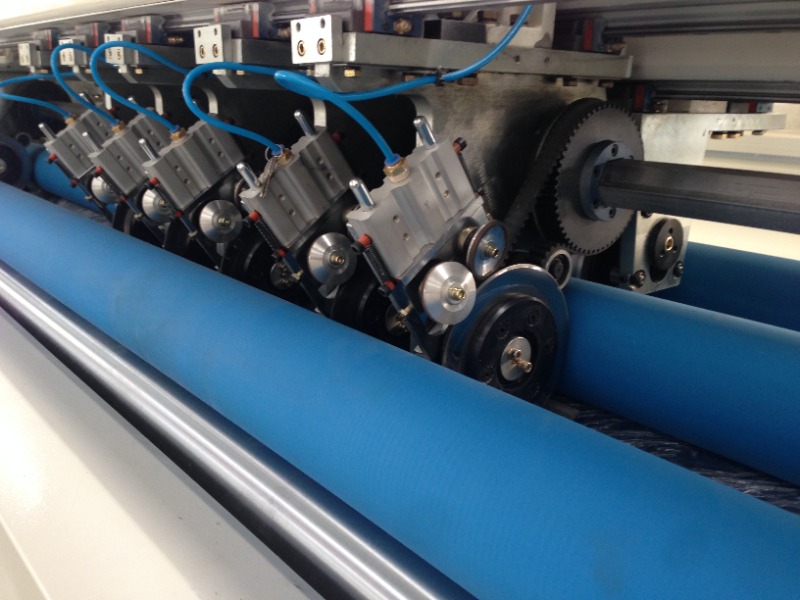

3. High-Speed Automatic Production Lines

Designed for continuous operation on corrugated slitting and scoring equipment up to 450m/min.

4. Custom Industrial Applications

Available in customized dimensions, edge angles, and coating specifications according to production requirements.

Standard specifications:

• Outer diameter: 80–300mm
• Thickness: 0.8–3.0mm
• Compatible with major corrugated machinery systems

Economic Benefits for Packaging Manufacturers

Using TiN PVD coated slitter scorer knives provides measurable production advantages:

1. Reduced Tooling Cost

Extended service life reduces blade replacement frequency by approximately 10–20%.

2. Improved Equipment Efficiency (OEE)

Reduced downtime from blade change and maintenance improves overall production efficiency by 20–30%.

3. Lower Scrap Rate

More stable cutting performance reduces waste rate to below 0.8%.

4. Reduced Maintenance Frequency

Longer sharpening intervals reduce total maintenance cost and production interruptions.

Technical Support & Engineering Service

Shengong provides full technical support for industrial packaging customers, including:

• Cutting performance testing
• On-site production parameter adjustment
• Custom coating solutions
• OEM drawing-based manufacturing
• Long-term supply support

Our engineering team helps customers optimize cutting performance based on material type, production speed, and equipment configuration.

Conclusion

The TiN/TiCN PVD coated corrugated slitter scorer knife is designed for high-speed corrugated production environments where blade stability, durability, and cutting precision are critical.

With improved wear resistance, thermal stability, and anti-adhesion performance, it helps packaging manufacturers achieve longer tool life, reduced downtime, and more stable production output.
